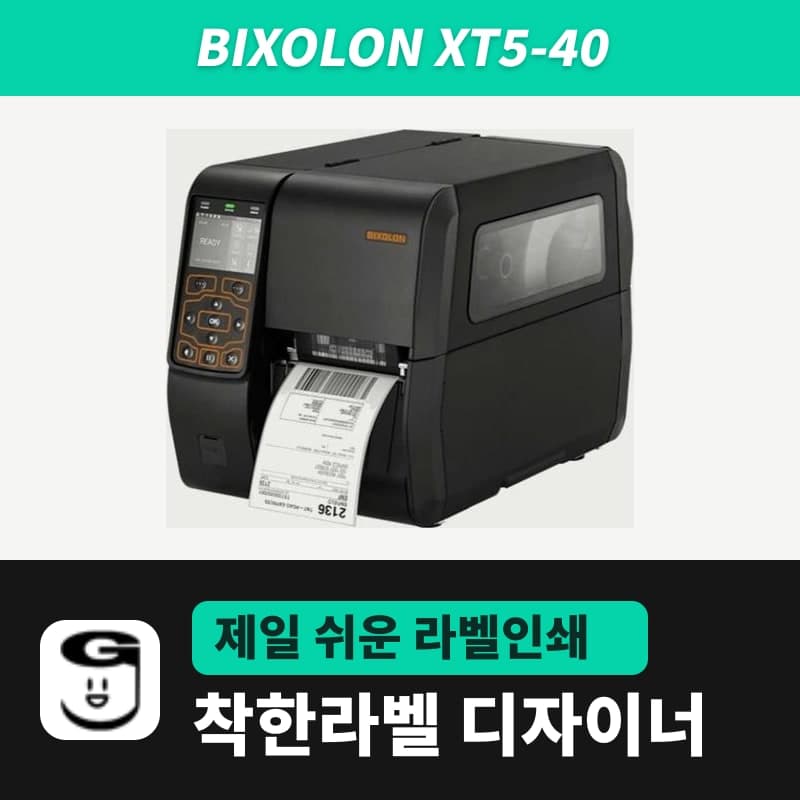

Bixolon XT5-40 label printer
The XT5-40 is a Bixolon 4-inch industrial 203dpi printer running up to 14ips (356mm/s), with a 104mm print width, 4,000mm labels and Gigabit Ethernet as standard. Per the spec sheet it supports BPL-Z (ZPL II) for GoodLabel Designer's XT5-40 entry; its emulation menu has auto and BPL-D.
- Print method
- Thermal transfer and direct thermal
- Resolution
- 203dpi (8 dots/mm)
- Max print width
- 104mm (832 dots)
- Max print speed
- 356mm/s (14ips), speed menu 2–14ips (6ips at shipment)
- Max print length
- 4,000mm (32,000 dots)
- Density menu
- 0–30, 15 at shipment
Specifications
| Print method | Thermal transfer and direct thermal |
|---|---|
| Resolution | 203dpi (8 dots/mm) |
| Max print width | 104mm (832 dots) |
| Max print speed | 356mm/s (14ips), speed menu 2–14ips (6ips at shipment) |
| Max print length | 4,000mm (32,000 dots) |
| Density menu | 0–30, 15 at shipment |
| Media | Width 25–114mm, thickness 0.06–0.30mm, outer diameter up to 203mm, core 38.1–76.2mm (1-inch optional) |
| Ribbon | Ink side out or in, up to 450m, 1-inch core / width 50–110mm on the spec sheet, 40–110mm in the manual specification table |
| Emulation | SLCS, BPL-Z (ZPL II), BPL-E (EPL), BPL-D (DPL) / menu auto (SLCS, BPL-Z, BPL-E) or BPL-D, auto at shipment |
| Interfaces | Standard: USB + serial + Ethernet (10/100/1000Mbps) + 2 USB hosts |
| Display | 3.5-inch TFT LCD |
| Dimensions and weight | 269×490×324mm, 13.98kg |
| Sold variants | Connection: USB or RS232 |
| GoodLabel Designer model | XT5-40 (ZPL, 203dpi) |
The XT5-40 is the 203dpi model among Bixolon's 4-inch industrial printers, and its biggest difference is a speed of up to 14ips (356mm/s). The print width is 104mm (832 dots), a single label can be up to 4,000mm long, and it comes with USB, serial, Gigabit Ethernet and 2 USB hosts as standard.
The Designer's Speed and Density fields and the printer menu
The Speed field in GoodLabel Designer's Print window ranges from 1–14 (default 3), and the number is added before the first label of a job as the ZPL ^PR command. The XT5-40's speed menu is 2–14ips at 203dpi (6ips at shipment).
- There is no test record of whether ^PR and ~SD take effect on the XT5-40's settings. So check the actual speed against the printer menu setting.
- The Designer's density of 21 and the printer's shipment density of 15 share only the scale range (0–30) and are separate settings. The Designer's number is sent with ~SD.
- The two commands are added only before the first label of each print job, and when the next job starts, they are sent again with the Designer's numbers at that time.
The BPL-D option in the emulation menu
The XT5-40 in the Designer list is a ZPL, 203dpi entry, and according to the spec sheet the printer supports ZPL through BPL-Z (ZPL II) emulation. The emulation menu offers two choices, auto (SLCS, BPL-Z, BPL-E) and BPL-D, and the shipment setting is auto.
If the printer was switched to BPL-D to replace equipment that used DPL commands, BPL-Z, which interprets ZPL, is not in use, so switch it back to auto. After switching back, save the print method and label type in the Troubleshoot window and run Detect media once, and the printer settings will match the Designer.
The 104mm print width and label width
Media 25–114mm wide can be loaded, but the printed width is 104mm. A 100mm-wide label is 800 dots at 203dpi and fits within 832 dots; when using a roll wider than 100mm, enter the actual size as the Designer label width, then check with a test print that no element extends beyond 104mm.
Sold variants offer a USB or RS232 connection. The Korean-language PDF manual (XT5-40 user guide) and the Bixolon unified driver are both in the download center.
Compatible with GoodLabel Designer
You can design and print labels for this model with GoodLabel Designer, our free label software. GoodLabel Designer · User Guide
FAQ
- If I set the Designer speed to 14, does it print at 14ips?
- The Designer sends 14 as the ^PR command, but there is no confirmed record of it taking effect on Bixolon printers. 14ips is the printer's maximum, and the actual speed also depends on the data transfer speed and the command combination, so set the speed in the printer menu (2–14ips).
- What changes in the Designer if I switch to a 300dpi or 600dpi model?
- The XT5-43 (300dpi) and XT5-46 (600dpi) are separate entries in the Designer list. Changing the model in the Printer settings window also changes the resolution and recalculates barcode widths, but the editing canvas zoom stays as it is. The default zoom (60% for 300dpi, 30% for 600dpi) is applied when you change the resolution under Printer settings in the ribbon or open a file with Open.
- What if the Windows printer name does not contain the model name?
- Select the printer in the Designer's Printer settings window, then select XT5-40 from the list in the Printer model field. A name you type in yourself is not recognized, and since 203 DPI is the only resolution, it is set when you select the model.
Drivers & manuals
How to buy
- In Korea, this product is sold through our Korean online store. Korean product page →
- Outside Korea, contact us by email. Email: Contact →
- Or buy from an authorized dealer in your country.
Other models in this category

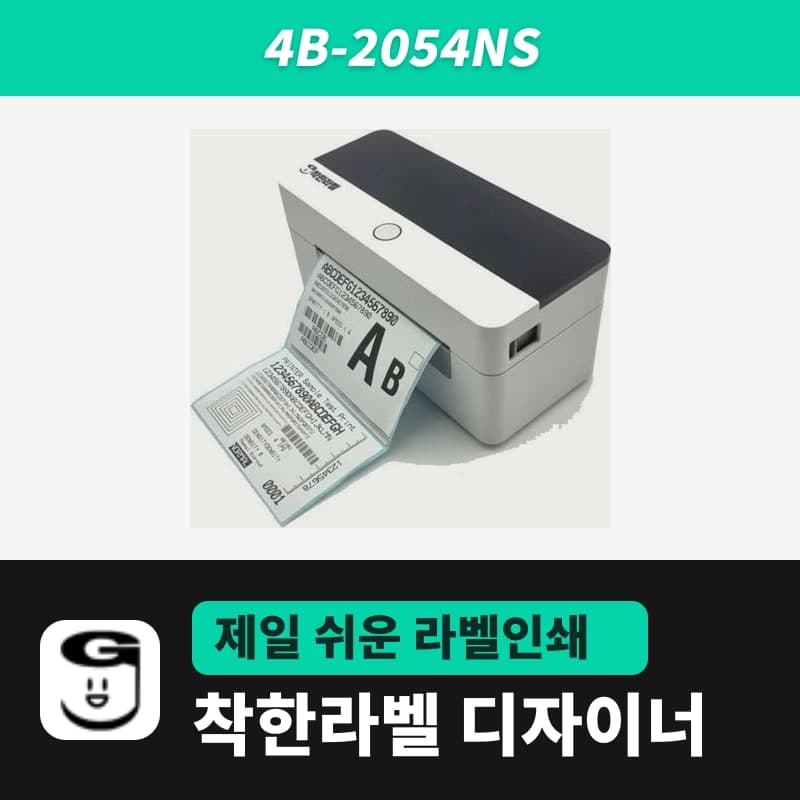

Good LabelGoodLabel 4B-2054NS direct thermal label printerThe GoodLabel 4B-2054NS is a direct thermal only 4-inch printer driven by GoodLabel Designer in TSPL; the Gap length field value goes into the GAP command as is. GoodLabel 4B-2054NS, W-4B-2054NS and Xprinter 4B-2054N in the model list are all TSPL at 203 dpi, so each sends the same commands.

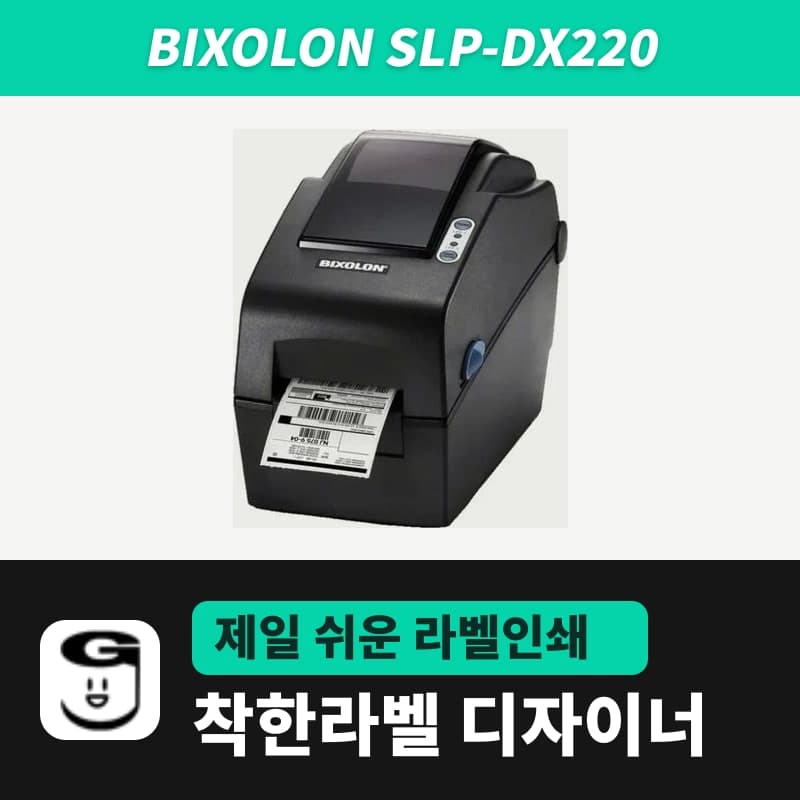

BixolonBixolon SLP-DX220 label printerThe SLP-DX220 is a Bixolon 2-inch direct thermal printer, 54mm print width, 203dpi, up to 6ips, rolls 15–60mm wide. Select SLP-DX220 (ZPL, 203dpi) in the GoodLabel Designer model list, and the Troubleshoot window skips the print method step and guides only saving the label type and Detect media.

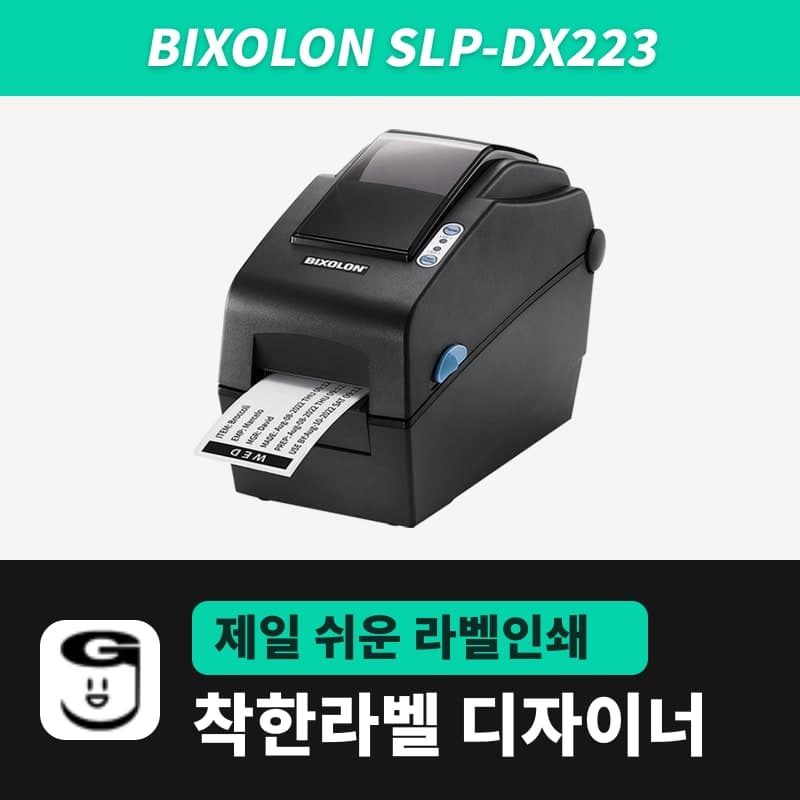

BixolonBixolon SLP-DX223 label printerA 2-inch direct thermal printer for dense text and QR codes on small labels 10–20mm tall, using the SLP-DX220 body with a head of about 11.8 dots per mm (print width 56.9mm, max 4ips). In the Designer model list it appears under its sales name, SLP-DX223, with a single ZPL, 300dpi setting.
BixolonBixolon SLP-DX420 label printerThe SLP-DX420 is a Bixolon 4-inch direct thermal only printer, 108mm wide at 203dpi and up to 7ips, suited to printing many thermal labels such as 100×150mm shipping labels. In GoodLabel Designer, select SLP-DX420 (ZPL, 203dpi); copies of the same label go as one ^PQ quantity command.

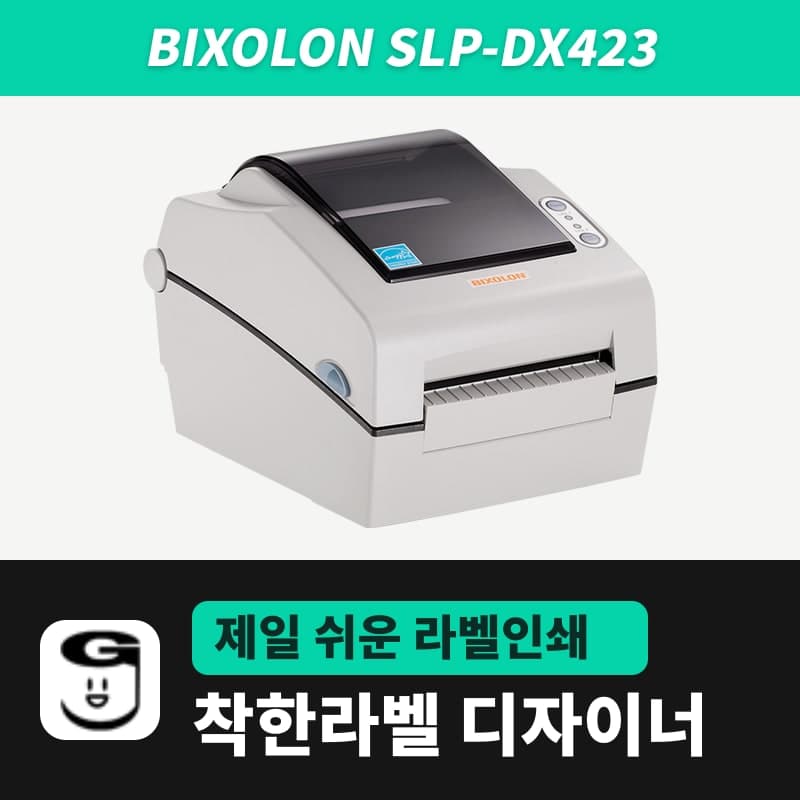

BixolonBixolon SLP-DX423 label printerFor the SLP-DX423, you must select the SLP-DX423 (ZPL, 300dpi) entry in GoodLabel Designer; if you send to the 203dpi SLP-DX420 entry, labels come out shrunk to about 68% of their size. The printer is a Bixolon 4-inch direct thermal only model with a 105.7mm print width and a max speed of 5ips.

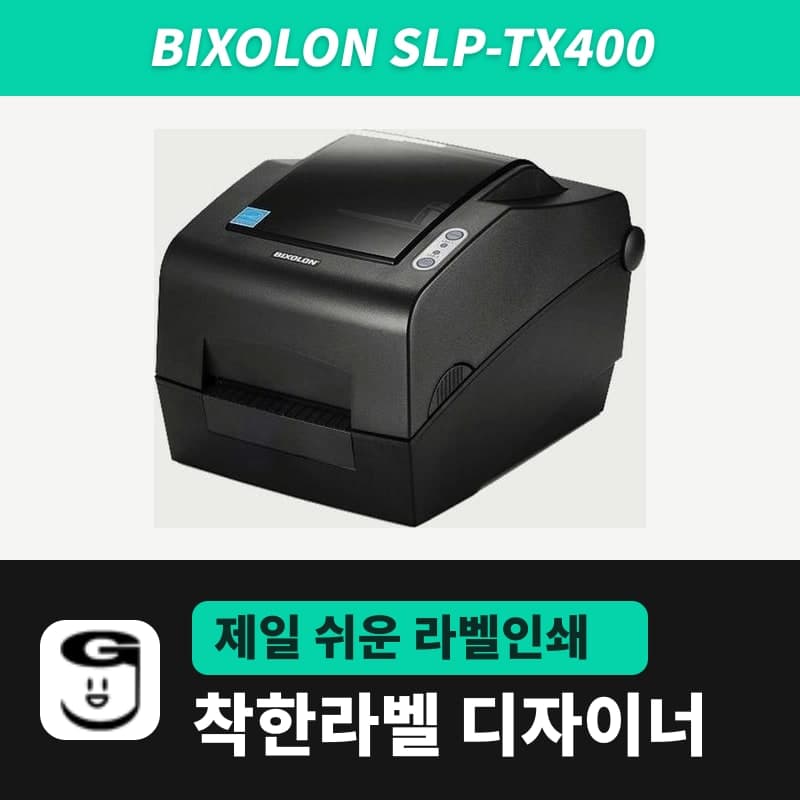

BixolonBixolon SLP-TX400 label printerIn the GoodLabel Designer Troubleshoot window, the print method step (thermal transfer or direct thermal) appears only when the Printer model field shows SLP-TX400. It is a Bixolon 4-inch thermal transfer and direct thermal printer (203dpi, 108mm, max 7ips); Designer entry: SLP-TX400 (ZPL, 203dpi).
