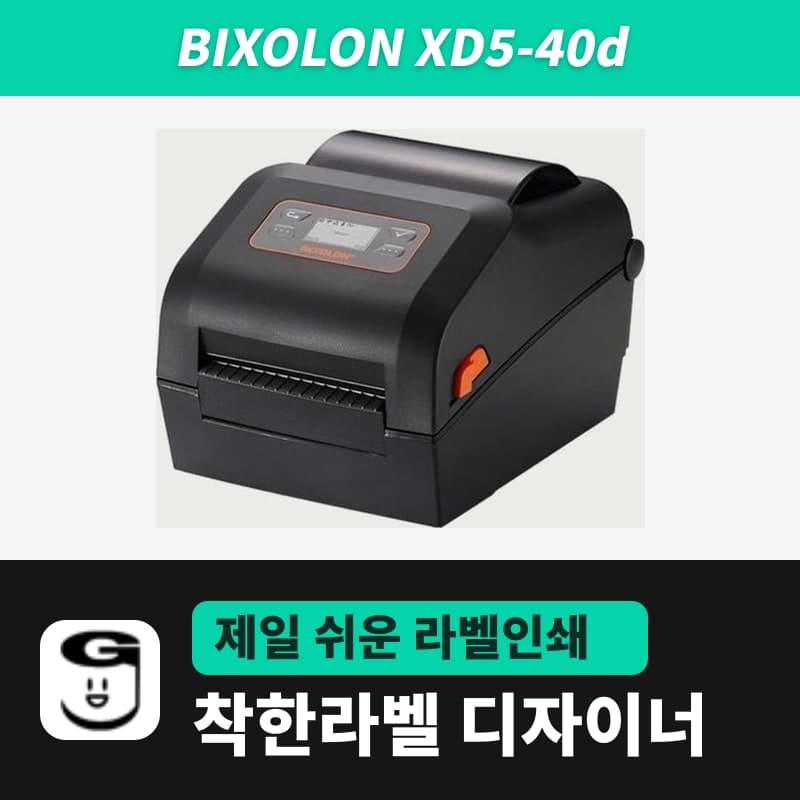

Bixolon XD5-40d label printer
The XD5-40d is a Bixolon 4-inch direct thermal only printer, the fastest in the XD5-40 series at 178mm/s (7ips), with 203dpi, 108mm width, and USB and USB host as standard. In GoodLabel Designer, select XD5-40d (ZPL, 203dpi), and set continuous media with the media type in Printer settings.
- Print method
- Direct thermal
- Resolution
- 203dpi (8 dots/mm)
- Max print width
- 108mm (864 dots)
- Max print speed
- 178mm/s (7ips)
- Max print length
- 1,000mm
- Media width and thickness
- 15–118mm, 0.06–0.20mm
Specifications
| Print method | Direct thermal |
|---|---|
| Resolution | 203dpi (8 dots/mm) |
| Max print width | 108mm (864 dots) |
| Max print speed | 178mm/s (7ips) |
| Max print length | 1,000mm |
| Media width and thickness | 15–118mm, 0.06–0.20mm |
| Media roll | Outer diameter up to 127mm, core inner diameter 25.4–38.1mm |
| Media type | Gap, black mark, notch, continuous, fanfold |
| Sensors | Transmissive (fixed), reflective (adjustable position), head open |
| Interfaces | Standard USB + USB host, optional USB + USB host + serial + Ethernet (including configurations that add wireless LAN or Bluetooth) |
| Display | None as standard (2 LEDs), optional FSTN LCD 200×100 |
| Emulation | SLCS, BPL-Z (ZPL II), BPL-E (EPL), BPL-D (DPL, optional) |
| Sold variants | Connection: USB, RS232, USB + Ethernet or RS232 + Ethernet; also sold as a USB-only unit |
| GoodLabel Designer model | XD5-40d (ZPL, 203dpi) |
The XD5-40d is the direct thermal only model of the XD5-40 series, without the ribbon mechanism, and prints the fastest in the series at 178mm per second (7ips). A 203dpi head covers a 108mm width, and the standard ports are USB and USB host. It is sold in two variants: one with a choice of connection configuration and one with USB only.
Sold variants and printer configurations
| Variant | Connection options | Expansion options |
|---|---|---|
| Variant with a choice of connection | USB, RS232, USB + Ethernet, RS232 + Ethernet | None, other options |
| USB-only variant | USB | None |
The XD5-40d uses only 203dpi direct thermal printing. The interfaces on the spec sheet are standard USB + USB host, optional USB + USB host + serial + Ethernet (10/100Mbps), and configurations that add wireless LAN or Bluetooth to that.
With any configuration, create a Windows printer with the Bixolon unified driver from the download center, then select that printer in the Designer. A printer connected over Ethernet, as long as it is registered as a Windows printer, has the same Designer settings as USB.
What the Designer's Speed and Density fields send
The number entered in the Speed field of the Print window (1–14, default 3) is added to the head of the first label of each job as ^PR. The Density field (0–30, default 21) is carried in the same place as the ~SD command.
There is no record confirming whether the XD5-40d follows these two commands; the commands GoodLabel confirmed on an actual unit are the media settings on the XD5-40t (firmware V01.50). The printer's max speed is 7ips (178mm/s), and on models with the LCD option, speed (3–7ips at 203dpi) and density (0–30) are changed directly in the setup menu. If the first label is faint or slow, change the two fields and compare with test prints.
Continuous media and black mark rolls
Besides gap, black mark and notch labels, the XD5-40d accepts uninterrupted continuous media and fanfold media. With the media type in the Designer's Printer settings set to Continuous media, ^MNN is sent before the first label along with the Designer label height as ^LL in dots, and the printer feeds that length as it prints.
The Bixolon steps in the Troubleshoot window offer only two choices, Gap labels and Black mark labels, with no continuous media. Because this is a direct thermal only model, the print method step is also skipped, so set up gap and black mark rolls with Label type → Save to printer → Detect media, and set continuous media only in Printer settings.
The black mark sensor is reflective and can be moved, and the transmissive gap sensor is fixed. When you load a black mark roll, move the sensor to the position of the black stripe, then run auto detection.
