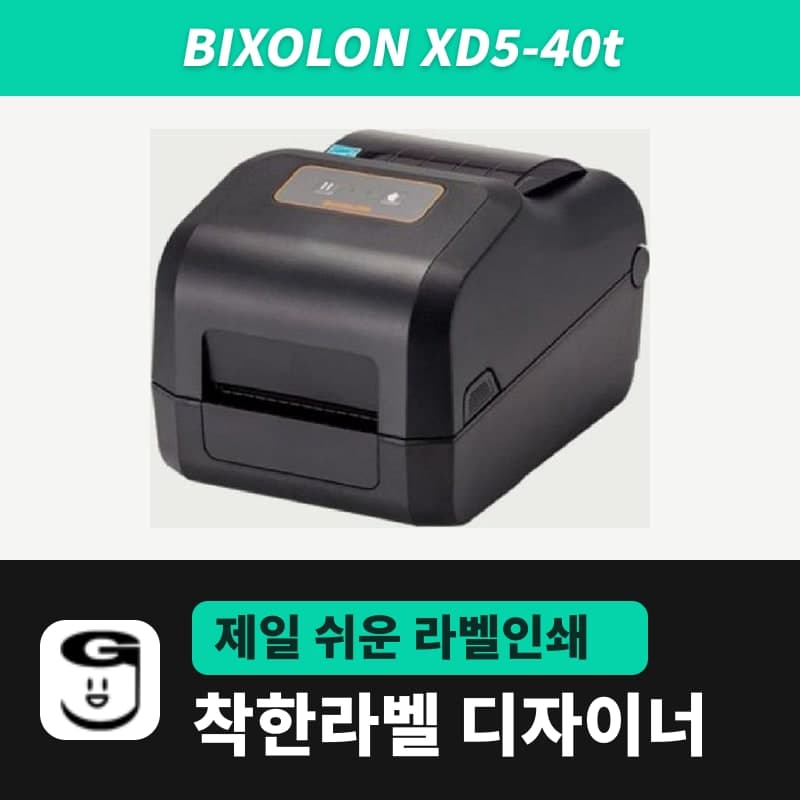

Bixolon XD5-40t label printer
The XD5-40t is a Bixolon 4-inch desktop printer (203dpi, 108mm, max 6ips): thermal transfer with a ribbon, direct thermal without. In GoodLabel Designer, select XD5-40t (ZPL, 203dpi) and save print method and label type in the Troubleshoot window, commands GoodLabel confirmed on firmware V01.50.
- Print method
- Thermal transfer and direct thermal
- Resolution
- 203dpi (8 dots/mm)
- Max print width
- 108mm
- Max print speed
- 152mm/s (6ips)
- Max print length
- 1,000mm
- Media width and thickness
- 15–118mm, 0.06–0.20mm
Specifications
| Print method | Thermal transfer and direct thermal |
|---|---|
| Resolution | 203dpi (8 dots/mm) |
| Max print width | 108mm |
| Max print speed | 152mm/s (6ips) |
| Max print length | 1,000mm |
| Media width and thickness | 15–118mm, 0.06–0.20mm |
| Media roll | Outer diameter up to 127mm, core inner diameter 25.4–38.1mm |
| Ribbon | Ink side out, wax, wax/resin, resin, width 33–110mm, up to 300m, 0.5-inch and 1-inch cores |
| Sensors | Transmissive (fixed), reflective (adjustable position), head open, ribbon end |
| Emulation | SLCS, BPL-Z (ZPL II), BPL-E (EPL), BPL-D (DPL, optional) |
| Interfaces | Standard: USB + USB host |
| Dimensions and weight | 210×284×188mm, 2.48kg |
| Sold variants | Connection: USB |
| GoodLabel Designer model | XD5-40t (ZPL, 203dpi) |
The XD5-40t is a Bixolon 4-inch desktop model that prints thermal transfer with a ribbon loaded and direct thermal without one, at 203dpi, a max speed of 6ips (152mm/s) and a print width of 108mm. The media setting commands sent by the Designer's Troubleshoot window are also the combination GoodLabel confirmed on this model (firmware V01.50).
Settings the Troubleshoot window leaves on the printer
When the Printer model field shows XD5-40t in the Troubleshoot window, opened from ≫ at the top right of the Designer, four steps open in order: Print method, Label type, Save to printer and Detect media. What each step leaves on the printer is shown below.
| Step | Command sent | What remains on the printer |
|---|---|---|
| Print method: thermal transfer / direct thermal | ^MTT / ^MTD | Print method (THERMAL TRANSFER / DIRECT_THERMAL) |
| Label type: gap / black mark | ^MNY / ^MNM | Media sensing method (gap sensor / black mark sensor) |
| Save to printer | The two commands above + ^JUS | Permanent save that remains after the power is turned off and on |
| Detect media | Save block + ~JC | Newly measured length of one label |
When you click Detect media, the printer feeds several labels to measure the length, so it is normal for the first few labels to come out blank. After saving, the message below the Detect media button in the window changes to orange and reads "Saved — run this step".
Print method by label material
| Label material | Ribbon | Designer Printer settings |
|---|---|---|
| Thermal paper | Not loaded | Print method Direct thermal → ^MTD |
| Paper such as art paper | Wax ribbon | Print method Thermal transfer → ^MTT |
| Coated and synthetic paper | Wax/resin or resin ribbon | Print method Thermal transfer → ^MTT |
Ribbons for this printer are wound ink side out, up to 300m, 33–110mm wide, and both 0.5-inch and 1-inch cores are used. The 300m variant of GoodLabel's wax ribbon is wound ink side out, so the direction is correct, and thermal media for use without a ribbon can be chosen from thermal roll labels.
Driver and sold variant
The sold variant has a single USB connection option, and the printer's standard ports are USB and USB host. Download the English manual PDF from XD5-40t user guide and the installer from the Bixolon unified driver page in the download center. If the Windows printer name contains XD5-40t, the Designer fills in the model and 203 DPI together.
Compatible with GoodLabel Designer
You can design and print labels for this model with GoodLabel Designer, our free label software. GoodLabel Designer · User Guide
FAQ
- Are the settings lost when I turn off the power after saving in the Troubleshoot window?
- The Save to printer step also sends ^JUS, which permanently saves the print method and media sensing method, so they remain after the power is turned off and on. Save again in the same window only when you change the roll or ribbon setup.
- Is there a 300dpi thermal transfer model in the Designer list?
- The XD5-43t from the same series is listed as a ZPL, 300dpi entry. Its print width is 105.7mm and its max speed is 4ips (102mm/s).
- What do I change each time I switch between thermal and thermal transfer labels?
- Along with removing or loading the ribbon, change the print method in the Designer's Printer settings to Direct thermal (^MTD) or Thermal transfer (^MTT). If you leave the print method set to Printer settings, the Designer does not send a method, so in that case save the new method again in the Troubleshoot window.
